2EDGR-5.08MM 2p-12Pin Terminal Block Connector 2EDGV 2EDGVC 2EDGRC 2EDGR-5.08 Match to 2EDGK-5.08

Description : KF2EDGR 2EDGK-5.08 Pluggable terminal block 2EDGR-5.08MM red orange blue white black green colors For choice

Stock : In Stock

MOQ : 10pieces

Price : Negotiated

Payment Terms : T/T, Western Union,PAYPAL

Product Name : 2EDGR-5.08MM 2p-12Pin Terminal Block Connector 2EDGV 2EDGVC 2EDGRC 2EDGR Match to 2EDGK-5.08

Plastic material : PA66

Terminal material : copper

Screw : Steel

Rated voltage : 300V

Rated current : 10A

Wire range : 24-12AWG 2.5mm

Withstanding voltage : AC2500V/1Min

Temprature : -40℃~+105℃

Pitch : 5.08mm

Poles : 2pins-12pins

Color : red orange blue white black green

Contact Now

KF2EDGR 2EDGK-5.08 Pluggable terminal block 2EDGR-5.08MM 1X2P-12PIN red orange blue white black green colors For choice

320V 15A 8 Wire Gauge 2.5mm2 Number of Rows 1 Wire Gauge-AWG12~AWG24 PITCH 5.08mm Number of positions or pins :1x2P-12P
Plug P=5.08mm Pluggable System Terminal Block ROHS

There are different colors red orange blue white black green colors For choice,

Number of positions or pins are 1x2P to 12P for available. Please don't hesitate to reach out us for more information.

Specifications:

Plastic material:	PA66
Terminal material:	copper
Screw:	Steel
Rated voltage:	300V
Rated current:	10A
Wire range:	24-12AWG 2.5mm2
Withstanding voltage:	AC2500V/1Min
Temp.:	-40℃~+105℃
Strip length:	7-8mm
Poles	2p-12p
Pitch:	5.08mm

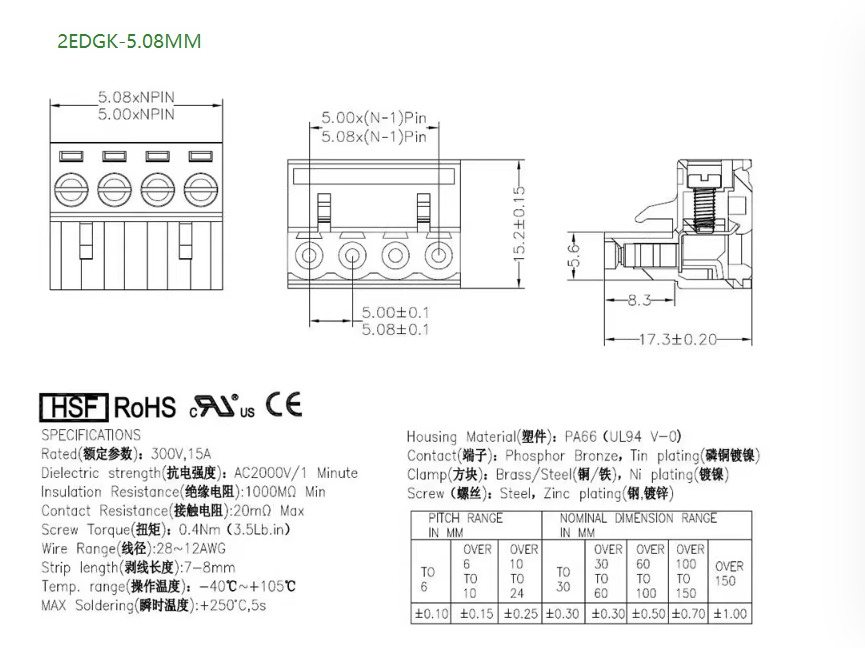

2EDGK-5.08 Pluggable terminal block:

2EDGR-5.08MM 2p-12Pin Terminal Block Connector 2EDGV 2EDGVC 2EDGRC 2EDGR-5.08 Match to 2EDGK-5.08

2EDGR-5.08MM 2EDGRC-5.08MM 2p-12Pin Terminal Block Connector 2EDGRC 2EDGR Match to 2EDGK-5.08

2EDGR-5.08MM 2p-12Pin Terminal Block Connector 2EDGV 2EDGVC 2EDGRC 2EDGR-5.08 Match to 2EDGK-5.08

2EDGV-5.08 Pluggable terminal block

2EDGR-5.08MM 2p-12Pin Terminal Block Connector 2EDGV 2EDGVC 2EDGRC 2EDGR-5.08 Match to 2EDGK-5.08

2EDGVC-5.08MM Pluggable terminal block

2EDGR-5.08MM 2p-12Pin Terminal Block Connector 2EDGV 2EDGVC 2EDGRC 2EDGR-5.08 Match to 2EDGK-5.08

For more Pluggable terminal block:

2EDGR-5.08MM 2p-12Pin Terminal Block Connector 2EDGV 2EDGVC 2EDGRC 2EDGR-5.08 Match to 2EDGK-5.08

Barrier Terminal Block:

2EDGR-5.08MM 2p-12Pin Terminal Block Connector 2EDGV 2EDGVC 2EDGRC 2EDGR-5.08 Match to 2EDGK-5.08

Spring Terminal block

2EDGR-5.08MM 2p-12Pin Terminal Block Connector 2EDGV 2EDGVC 2EDGRC 2EDGR-5.08 Match to 2EDGK-5.08
